HOTSPOT -

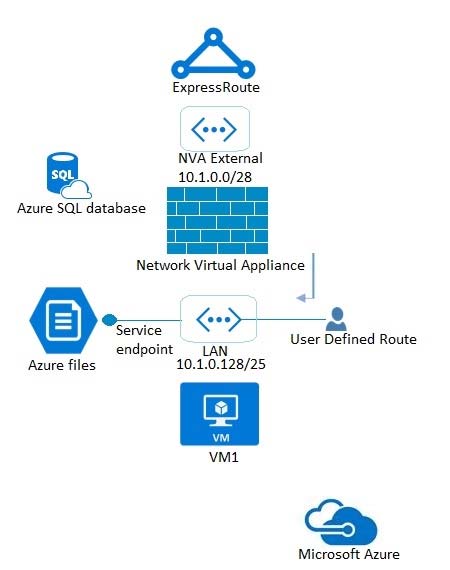

You have the network topology shown in the following exhibit.
You have a user-defined route that has a default route of 0.0.0.0/0 and the next hop set to the network virtual appliance.
You configure the Azure Storage account to use virtual network service endpoints.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

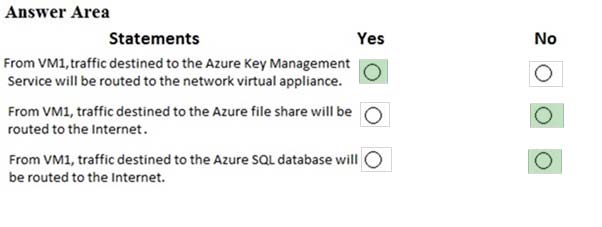

Correct Answer:
References:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-udr-overview
You are designing a container solution in Azure that will include two containers. One container will host a web API that will be available to the public. The other container will perform health monitoring of the web API and will remain private. The two containers will be deployed together as a group.
You need to recommend a compute service for the containers. The solution must minimize costs and maintenance overhead.
What should you include in the recommendation?
Correct Answer:
D
References:
https://docs.microsoft.com/en-us/azure/container-instances/container-instances-container-groups
HOTSPOT -
Your company has three branch offices and an Azure subscription. Each branch office contains a Hyper-V host that hosts application servers.
You need to recommend a storage solution for the branch offices. The solution must ensure that the application servers can connect to a central storage device by using iSCSI connections. Data saved to the iSCSI storage device from the application servers must be uploaded to Azure automatically.

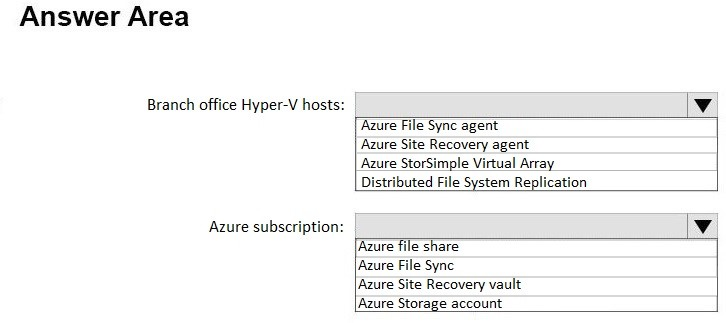

Which components should you include in the recommendation? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

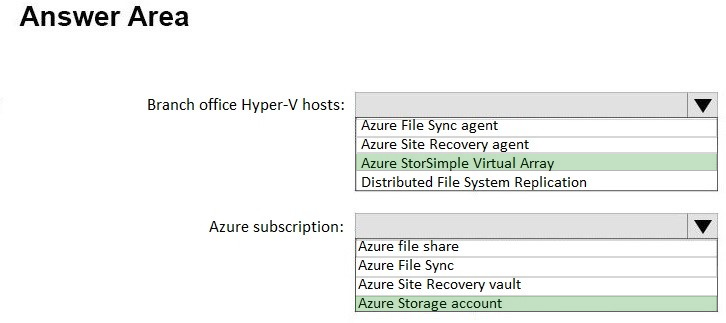

Correct Answer:
References:
https://docs.microsoft.com/en-us/azure/storsimple/storsimple-ova-overview
DRAG DROP -
You have an on-premises network that uses an IP address space of 172.16.0.0/16.
You plan to deploy 25 virtual machines to a new Azure subscription.
You identify the following technical requirements:
✑ All Azure virtual machines must be placed on the same subnet named Subnet1.
✑ All the Azure virtual machines must be able to communicate with all on-premises servers.
✑ The servers must be able to communicate between the on-premises network and Azure by using a site-to-site VPN.
You need to recommend a subnet design that meets the technical requirements.

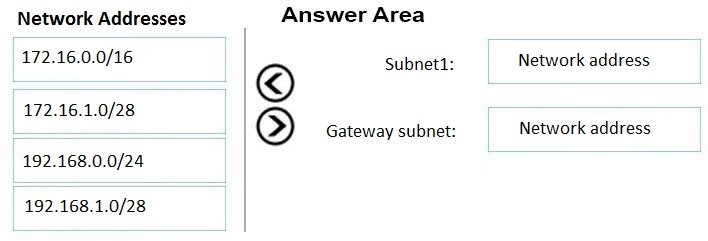

What should you include in the recommendation? To answer, drag the appropriate network addresses to the correct subnets. Each network address may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

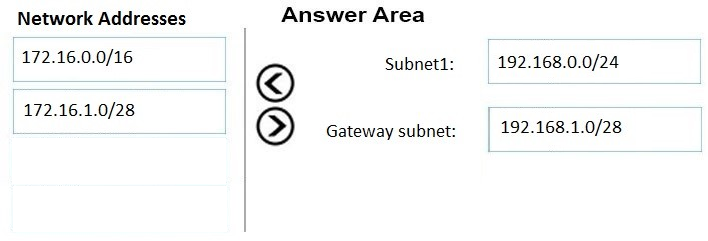

Correct Answer:
Note: This question is part of series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You are migrating an on-premises application to Azure. One component of the application is a legacy Windows native executable that performs image processing.
The image processing application must run every hour. During times that the image processing application is not running, it should not be consuming any Azure compute resources.
You need to ensure that the image processing application runs correctly every hour.
Solution: Create an Azure WebJob that runs the image processing application every hour.
Does the solution meet the goal?
Correct Answer:
B
Instead use an Azure Logic Apps, which helps you automate workflows that run on a schedule.
References:
https://docs.microsoft.com/en-us/azure/logic-apps/tutorial-build-schedule-recurring-logic-app-workflow
