You plan to deploy an application that will run in a Linux-based Docker container.
You need to recommend a solution to host the application in Azure. The solution must meet the following requirements:
✑ Support a custom domain name and an associated SSL certificate.
✑ Scale-out automatically based on demand.
✑ Minimize administrative effort and costs.
What should you include in the recommendation?
Correct Answer:
A
App Service not only adds the power of Microsoft Azure to your application, such as security, load balancing, autoscaling, and automated management. You can also take advantage of its DevOps capabilities, such as continuous deployment from Azure DevOps, GitHub, Docker Hub, and other sources, package management, staging environments, custom domain, and TLS/SSL certificates.
Key features of App Service include:
✑ Containerization and Docker - Dockerize your app and host a custom Windows or Linux container in App Service.
✑ Scale up or out manually or automatically. Host your apps anywhere in Microsoft's global datacenter infrastructure, and the App Service SLA promises high availability.
App Service can also host web apps natively on Linux for supported application stacks. It can also run custom Linux containers (also known as Web App for
Containers).
Reference:
https://docs.microsoft.com/en-us/azure/app-service/overview
HOTSPOT -
You are designing an Azure web app.
You plan to deploy the web app to the North Europe Azure region and the West Europe Azure region.
You need to recommend a solution for the web app. The solution must meet the following requirements:
✑ Users must always access the web app from the North Europe region, unless the region fails.
✑ The web app must be available to users if an Azure region is unavailable.
✑ Deployment costs must be minimized.
What should you include in the recommendation? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

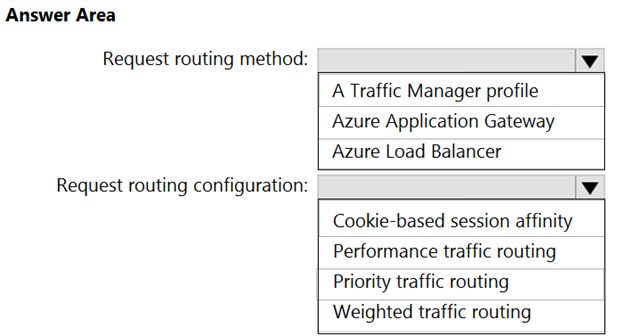

Hot Area:

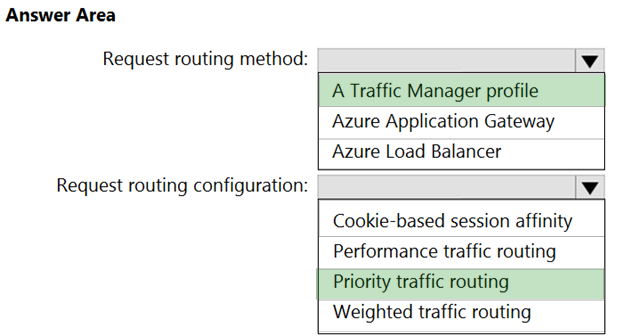

Correct Answer:
HOTSPOT -

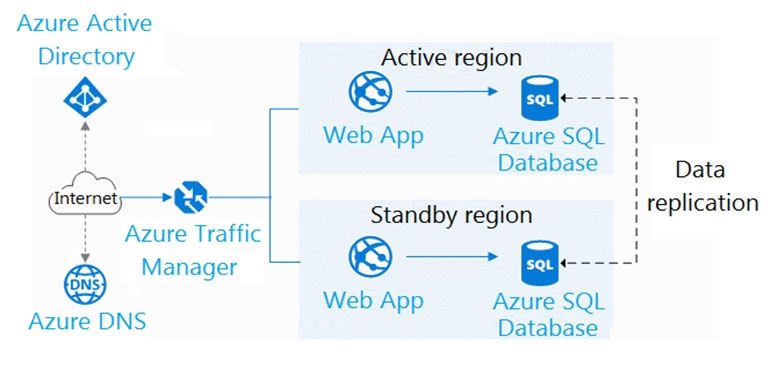

You have the application architecture shown in the following exhibit:
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

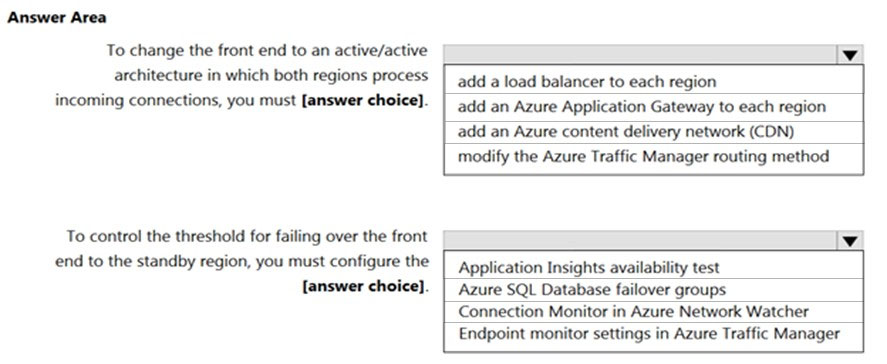

Hot Area:

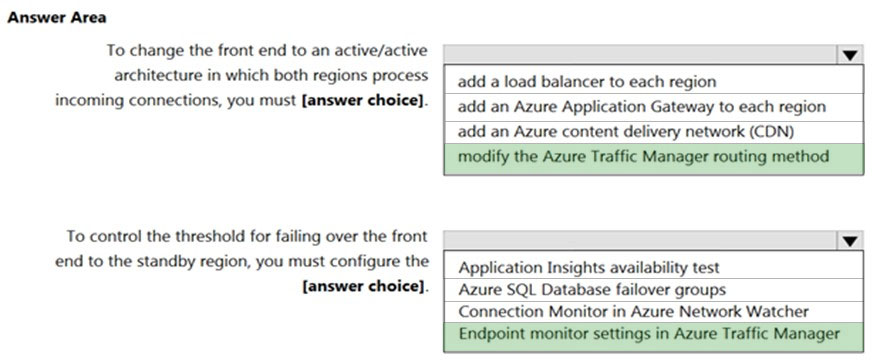

Correct Answer:
Box 1: Modify the Azure Traffic Manager routing
Azure Traffic Manager supports six traffic-routing methods to determine how to route network traffic to the various service endpoints.
Box 2: Endpoint monitor settings in the Azure Traffic Manager
Azure Traffic Manager includes built-in endpoint monitoring and automatic endpoint failover. This feature helps you deliver high-availability applications that are resilient to endpoint failure, including Azure region failures.
To configure endpoint monitoring, you must specify the following settings on your Traffic Manager profile: Protocol, Port, Path, custom header settings, etc.
Reference:
https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-routing-methods https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-monitoring
HOTSPOT -
You have an Azure subscription named Subscription1 that is linked to a hybrid Azure Active Directory (Azure AD) tenant.
You have an on-premises datacenter that does NOT have a VPN connection to Subscription1. The datacenter contains a computer named Server1 that has
Microsoft SQL Server 2016 installed. Server1 is prevented from accessing the internet.
An Azure logic app named LogicApp1 requires write access to a database on Server1.
You need to recommend a solution to provide LogicApp1 with the ability to access Server1.
What should you recommend deploying on-premises and in Azure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

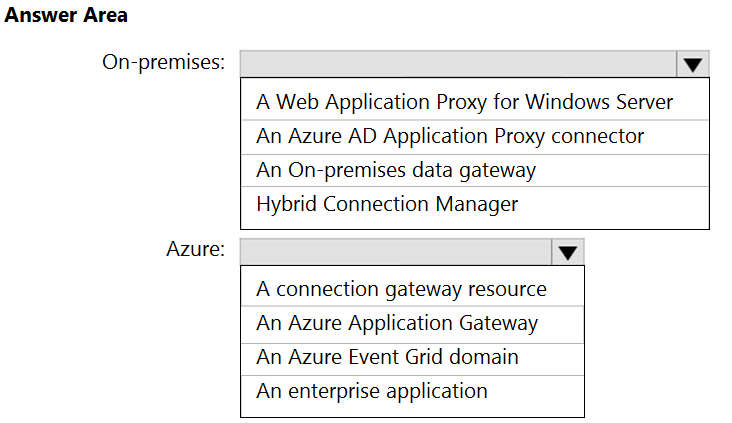

Hot Area:

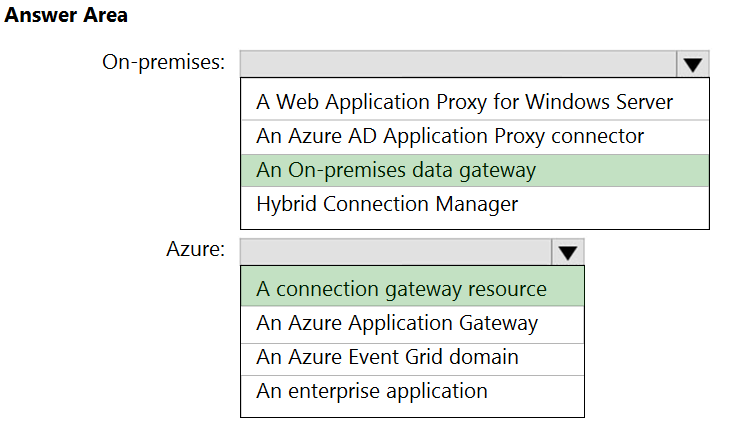

Correct Answer:
Box 1: An on-premises data gateway
For logic apps in global, multi-tenant Azure that connect to on-premises SQL Server, you need to have the on-premises data gateway installed on a local computer and a data gateway resource that's already created in Azure.
Box 2: A connection gateway resource
Reference:
https://docs.microsoft.com/en-us/azure/connectors/connectors-create-api-sqlazure
